What's on your Aux Switches

Sage6058

Member
Joined
Dec 29, 2020
Messages
15
Reaction score
29
Location
Haughton, LA
Aux 1 Baja Designs amber fog lights
Considering an air horn on one of the others!


Sent from my SM-S908U using Tapatalk


1954 M37

New Member
Joined
Apr 7, 2021
Messages
24
Reaction score
19
Anyone used an Aux switch as a kill switch? If so, what circuit (fuel pump, etc.) did you tap into and where?


H3LZSN1P3R

You're doing it wrong
Joined
May 29, 2020
Messages
6,996
Reaction score
5,899
Anyone used an Aux switch as a kill switch? If so, what circuit (fuel pump, etc.) did you tap into and where?
I dont think it would work well mine can sometimes drop out when cranking so it could cause a no start issue


Big Baloo

Active Member
Joined
Jun 13, 2022
Messages
133
Reaction score
165
Location
Alabama
Planned:

Aux 1 - Transfer Tank Solenoid
Aux 2 - Rear Quick Disconnect for Car Carrier Winch Solenoid
Aux 3 - Possible Train Horn
Aux 4 - Empty;
Aux 5 - Empty;
Aux 6 - Annoying Travel Companion Ejector Seat


John Jensen

Well-Known Member
Joined
Feb 11, 2020
Messages
972
Reaction score
812
Update
Auxiliary Switch #1 - Baja Designs 20" LED bar in the front bumper

Auxiliary Switch #2 - Nilight Rear LED Lights under the rear bumper

Auxiliary Switch #3 - Nanny Control Switch - Shuts off the ESC, TCS & ABS

Auxiliary Switch #4 - KC Hilites Underhood Lights

Auxiliary Switch #5 - Vacant

Auxiliary Switch #6 - Vacant

Last edited:

H3LZSN1P3R

You're doing it wrong
Joined
May 29, 2020
Messages
6,996
Reaction score
5,899
Auxiliary Switch #3 - Nanny Control Switch, Shuts off the ESC, TCS & ABS
How did you do this one john?

We used to do it in the jeeps by interrupting power to the traction control module then it was off till next restart


John Jensen

Well-Known Member
Joined
Feb 11, 2020
Messages
972
Reaction score
812
How did you do this one john?

We used to do it in the jeeps by interrupting power to the traction control module then it was off till next restart
For my 1500 Eco I made a switch system. For my 2020 HO I bought an Abel system
Abel Nanny Kill Switch

Edit:
If you order one be sure to tell Abel you are using an Aux Switch as he will modify for plug and play to an Aux Switch.
My order showed "Modified for Aux Switch control"

Last edited:

John Jensen

Well-Known Member
Joined
Feb 11, 2020
Messages
972
Reaction score
812
Now thats a nifty idea i might make one its
Go for it! Easy to do.
Here's a copy of my 1500's switch diagram that uses 30 amp fuse F26. For a 2019+ HD you would use 40 amp fuse D11. For any truck with aux switches just ignore the remote switch on my diagram and use an aux switch. When I did this Abel was not in the picture, however, his system is similar to mine. The hardest part is modifying the fuse. If you find a fuse adapter that replaces the "modified fuse" process let me know.


Attachments

  • 22a-ESC-TCS Modification - JFJ.pdf
    74.6 KB · Views: 22

Big Baloo

Active Member
Joined
Jun 13, 2022
Messages
133
Reaction score
165
Location
Alabama
Planned:

Aux 1 - Transfer Tank Solenoid
Aux 2 - Rear Quick Disconnect for Car Carrier Winch Solenoid
Aux 3 - Possible Train Horn
Aux 4 - Empty;
Aux 5 - Empty;
Aux 6 - Annoying Travel Companion Ejector Seat
Update to planned:

Aux 1 - Transfer Tank Solenoid
Aux 2 - 2 Wheel Low Unlock (BDDiesel)
Aux 3 - Furrion Monitor
Aux 4 - Possible Train Horn
Aux 5 - Empty
Aux 6 - Rear Quick Disconnect for Winch Connection


AH64ID

Well-Known Member
Joined
Oct 5, 2021
Messages
674
Reaction score
488
Need to get these done before hunting season...

Aux 1 - Aux Reverse Lights
Aux 2 - Winch Solenoid
Aux 3 - Air Compressor
Aux 4 - Empty
Aux 5 - Empty
Aux 6 - Trailer TPMS booster

Considering a nanny kill switch and a 2-Lo mod...but still unsure as I never needed either on my 2018.


Rallyguy44

New Member
Joined
Dec 5, 2022
Messages
1
Reaction score
0
For adding reverse lights is there a way to get them hooked to an aux switch without having to run a wire all the way to the back of the truck? I’ve seen a few mentions of a plug above the spare tire but don’t understand how to tie that to one of the switches. Thanks!


MtnRider

Well-Known Member
Joined
Feb 5, 2020
Messages
727
Reaction score
587
Location
Georgia
For adding reverse lights is there a way to get them hooked to an aux switch without having to run a wire all the way to the back of the truck? I’ve seen a few mentions of a plug above the spare tire but don’t understand how to tie that to one of the switches. Thanks!

Those blunt cut wires are a dead end, your better off just running a new wire.

.


1651Naismith

Active Member
Joined
Jan 1, 2020
Messages
143
Reaction score
148
Location
Colorado Springs, CO
For adding reverse lights is there a way to get them hooked to an aux switch without having to run a wire all the way to the back of the truck? I’ve seen a few mentions of a plug above the spare tire but don’t understand how to tie that to one of the switches. Thanks!
I thought there were details in this thread or a separate thread on the reverse lights. I found out about that option after I ran mine the length of the truck -- which was a PITA.


AH64ID

Well-Known Member
Joined
Oct 5, 2021
Messages
674
Reaction score
488
For adding reverse lights is there a way to get them hooked to an aux switch without having to run a wire all the way to the back of the truck? I’ve seen a few mentions of a plug above the spare tire but don’t understand how to tie that to one of the switches. Thanks!

There are wiring schematics on the Ram Body Builder website that can assist you in making it work. There should also be some wiring diagrams in this thread. @John Jensen has a pretty good write-up on it.

Those blunt cut wires are a dead end, your better off just running a new wire.

.

Why is that? I used them and it was a very easy install to do so. You do have to do a little wiring under the dash, but it makes it pretty clean for up to 2 pre-ran circuits are the rear bumper.


MtnRider

Well-Known Member
Joined
Feb 5, 2020
Messages
727
Reaction score
587
Location
Georgia
There are wiring schematics on the Ram Body Builder website that can assist you in making it work. There should also be some wiring diagrams in this thread. @John Jensen has a pretty good write-up on it.



Why is that? I used them and it was a very easy install to do so. You do have to do a little wiring under the dash, but it makes it pretty clean for up to 2 pre-ran circuits are the rear bumper.

Because it is probably easier for him to wire from the aux output in the engine bay straight back vs running it back into the cab and trying to get the correct pins etc to interface with the existing connector. Then you will still need to extend the ends at the rear to get them to reach the lights.

.


AH64ID

Well-Known Member
Joined
Oct 5, 2021
Messages
674
Reaction score
488
Because it is probably easier for him to wire from the aux output in the engine bay straight back vs running it back into the cab and trying to get the correct pins etc to interface with the existing connector. Then you will still need to extend the ends at the rear to get them to reach the lights.

.

Having done both I would still use the blunt cut wires for the rear bumper if there were no plans to use the IGN+ or Batt+ back there. It’s not difficult.


John Jensen

Well-Known Member
Joined
Feb 11, 2020
Messages
972
Reaction score
812
Here's what I did


Attachments

  • 01b-Nilight Backup LED Bars-Wiring.pdf
    41.4 KB · Views: 11

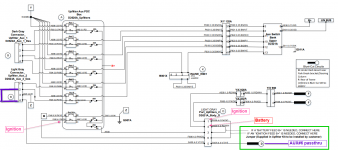

  • 02a-Auxillary Switches - Wiring Diagram.png
    02a-Auxillary Switches - Wiring Diagram.png
    253.9 KB · Views: 26

elephantrider

Hydraulic Lifter Crew
Joined
Sep 3, 2019
Messages
1,839
Reaction score
2,234
aux 1 light bar
aux 2 fogs
aux 3 rear floods
aux 4 empty
aux 5 air pump for ttain horns
aux 6 empty


406Linetrash

Active Member
Joined
Oct 4, 2020
Messages
230
Reaction score
221
Split my loom for my light bar. It has amber led “marker” lights between the row.

Aux 1 Lightbar
Aux 2 ambers
