2026 Ram Heavy Duty Buyer’s Guide: Everything You Need To Know!

Our in-depth breakdown of Ram’s most complex lineup, and how to spec the right truck for your needs

2025 Ram 2500 Limited Longhorn Crew Cab 4x4. (Ram).

The 2026 Ram Heavy Duty lineup looks simple at first glance, but choosing the right Ram 2500 or Ram 3500 can get confusing fast. Between multiple engines, wide-ranging towing and payload ratings, new trims like Warlock and Black Express, and dozens of cab and bed configurations, small decisions can have a big impact on how the truck actually works for you. This 2026 Ram Heavy Duty buyer’s guide breaks everything down clearly so you can choose the right setup the first time. For 2026, Ram keeps the core of its heavy-duty trucks largely unchanged after a major overhaul in 2025 that introduced the updated high-output 6.7-liter Cummins diesel, an eight-speed automatic transmission for Cummins-powered trucks, and a refreshed interior with an optional 14.5-inch UConnect screen and new towing technology. This year is best described as a light refresh, highlighted by two new value-focused trims, updated GVWR certifications that affect payload ratings, and subtle lineup refinements rather than major mechanical changes.

Quick takeaway: If you’re shopping for a 2026 Ram 2500 or Ram 3500, the right trim, engine, and configuration matter far more than the badge on the hood — especially for towing, payload, and daily usability.

2026 Ram Heavy Duty trim lineup — 2026 Ram 2500 Black Express Crew Cab 4×4. (MoparInsiders).

What’s New for 2026

New Ram 2500 Black Express: a value-focused appearance package built from Tradesman (with a starting price of $55,195 including destination).
New Ram 2500 Warlock: the first HD Warlock, positioned as an off-road value trim (with a starting price of $58,625, including destination). Hardware highlights include an anti-spin rear differential, Bilstein shocks, underbody skid plates, and 34-inch all-terrain tires.
GVWR changes: select heavy-duty models increase GVWR by up to 850 lbs due to revised testing/certification procedures (this can move payload ratings).
Powertrains carry over: 6.4L HEMI V8 and 6.7L Cummins HO remain the two engine choices for the lineup (availability depends on trim).

Quick takeaway: If you’re comparing a 2026 truck to a 2025, don’t assume the payload/towing numbers “should” match. Always cross-check the configuration in the 2026 towing charts.

Ram 2500 vs Ram 3500: Which Heavy Duty Truck Should You Buy?

Quick answer: Choose the Ram 2500 if you want better ride comfort and don’t need maximum payload. Choose the Ram 3500 if towing or hauling heavy loads is the priority.

At a glance, the Ram 2500 and Ram 3500 look nearly identical, but they’re engineered
for different jobs. The 2500 leans toward ride comfort and everyday usability, while the 3500 is built
first and foremost for maximum payload and trailer weight. The differences go beyond badges and affect
suspension design, axle choices, and how much weight the truck can safely handle.

Category	Ram 2500	Ram 3500
Primary role	Heavy towing with better ride comfort	Maximum towing and payload capability
Rear suspension	Five-link coil spring (air suspension available)	Leaf spring (supplemental air suspension available)
Max towing (diesel)	Up to 20,000 lbs	Up to 36,610 lbs
Max payload	Up to 3,930 lbs	Up to 7,590 lbs
Rear wheel options	Single rear wheel only	Single rear wheel or dual rear wheel
Ride quality (unloaded)	Smoother, more compliant	Stiffer, especially when empty
Best for	Daily driving, travel trailers, and fifth-wheels within limits	Large fifth-wheel and gooseneck trailers, heavy payloads

In simple terms, the Ram 2500 is often the better choice if your truck doubles as a daily driver or family vehicle. The Ram 3500 makes more sense if your trailer or cargo regularly pushes weight limits and you want an extra margin built into the chassis.

6.7-liter CUMMINS turbodiesel I6 engine. (Ram).

Powertrains Overview

Engine	Horsepower	Torque	Transmission	Notes
6.4L V8 HEMI (Upgrade HD Engine)	405 hp	429 lb-ft	8-speed auto (8HP75-LCV)	Higher payload configurations typically start here; tow ratings vary widely by axle ratio and cab/bed.
6.7L I6 Cummins HO Turbo Diesel	430 hp	1,075 lb-ft	8-speed TorqueFlite HD auto	High tow ceiling on 3500; available broadly across trims, but not on Power Wagon. For the 2027 model year, the Power Wagon does get the Cummins as an option.

In plain English: the gas 6.4L is the simpler, cheaper path to a heavy-duty truck, and it can deliver the best payload numbers in the right configuration. The Cummins HO diesel is the tow monster in this lineup, but its weight can reduce payload, depending on how you spec it (that’s normal for heavy-duty diesels).

Capability Overview

Towing and payload are rated by configuration. Cab, bed, drivetrain (4×2 vs 4×4), axle ratio, and, in some cases, equipment groups can move the numbers. Use the headline ratings as a starting point, then confirm your exact build in the detailed charts.

Quick takeaway: If you tow heavy often, the “right” truck is usually a 3500 diesel spec’d to match your trailer type. If you’re more payload-focused (tools, bed loads, slide-in campers), the “right” truck is often a 3500 gas or a carefully spec’d 2500 gas, depending on your real weights.

Maximum towing and payload (headline reference)

Model	Engine	Max Towing (lb)	Max Payload (lb)	Where it comes from
Ram 2500	6.4L HEMI	Up to 17,840	Up to 3,930	Example: 2500 4×2 Regular Cab 8′ box shows 3,930 payload and up to 17,840 max trailer rating depending on axle ratio.
Ram 2500	6.7L Cummins HO	Up to 20,000	Varies (example below)	Multiple 2500 configurations list a 20,000-lb max trailer rating in the 2026 charts.
Ram 3500	6.4L HEMI	Varies by configuration	Up to 7,590	Example gas 3500 DRW configurations show 7,590 payload ratings.
Ram 3500	6.7L Cummins HO	Up to 36,720	Varies (example below)	Example: 3500 Big Horn/Lone Star 4×4 Reg Cab 8′ DRW shows a 45,000 GCWR and 36,720 max trailer rating.

Why trims and configurations matter

2500 vs 3500: 2500 uses a coil rear suspension for ride comfort; 3500 uses leaf springs and can be spec’d for much higher payload and higher tow ceilings.
Diesel vs gas: Diesel usually wins towing and low-speed pulling; gas often wins payload (because the engine itself is lighter).
4×4 penalty: 4×4 hardware adds weight, often reducing payload compared to 4×2 trucks.
Axle-ratio changes in towing: The charts show how the same truck can have very different ratings depending on axle ratio.

Dimensions (Cabs, Beds, Exterior, Interior)

Quick takeaway: Regular Cab and 8-foot beds maximize work utility and often towing-friendly packaging, while Mega Cab prioritizes rear-seat comfort. The 3500 adds key SRW vs DRW differences in width and stance.

Bed dimensions (Cargo Box)

All measurements below are OEM-published cargo box dimensions.

Nominal box size	SAE volume (cu ft)	Length at floor (tailgate closed)	Cargo width	Between wheelhouses	Depth	Tailgate opening width
6’4″ box (Crew or Mega)	57.5	76.3 in	66.4 in	51.0 in	20.1 in	60.4 in
8’0″ box (Regular or Crew)	74.7	98.3 in	66.4 in	51.0 in	20.2 in	60.4 in

Exterior dimensions — Ram 2500

Configuration	Drivetrain	Wheelbase	Overall length	Overall width	Overall height	Ground clearance	Turning diameter
Regular Cab 140.5-in WB, 8′ box	4×2	140.2 in	232.0 in	83.5 in	78.0 in	13.0 in	45.4 ft
Regular Cab 140.5-in WB, 8′ box	4×4	140.2 in	232.0 in	83.5 in	80.2 in	13.1 in	45.5 ft
Crew Cab 149.5-in WB, 6’4″ box	4×2	149.0 in	238.8 in	83.5 in	78.2 in	11.1 in	47.9 ft
Crew Cab 149.5-in WB, 6’4″ box	4×4	149.0 in	238.8 in	83.5 in	80.2 in	13.1 in	47.9 ft
Crew Cab 169.5-in WB, 8′ box	4×2	169.0 in	260.8 in	83.5 in	78.1 in	11.1 in	53.5 ft
Crew Cab 169.5-in WB, 8′ box	4×4	169.0 in	260.8 in	83.5 in	80.1 in	13.1 in	53.5 ft
Power Wagon / Rebel Crew Cab 149.3-in WB, 6’4″ box	4×4	149.3 in	238.8 in	83.4 in	80.9 in	14.2 in (PW) / 13.3 in (Rebel)	48.2 ft
Mega Cab 160.5-in WB, 6’4″ box	4×4	160.4 in	249.9 in	83.5 in	80.1 in	13.1 in	51.2 ft

Exterior dimensions — Ram 3500 (SRW vs DRW differences)

Configuration	Drivetrain	SRW/DRW note	Wheelbase	Overall length	Overall width	Overall height	Ground clearance	Turning diameter
Regular Cab 140.5-in WB, 8′ box	4×2	SRW or DRW	140.2 in	232.0 in	83.5 in (SRW) / 96.5 in (DRW)	77.8 in (SRW)	11.2 in (SRW) / 10.6 in (DRW)	45.4 ft
Regular Cab 140.5-in WB, 8′ box	4×4	SRW or DRW	140.2 in	232.0 in	83.5 in (SRW) / 96.5 in (DRW)	79.5 in (SRW)	13.3 in (SRW) / 12.4 in (DRW)	45.5 ft
Crew Cab 169.5-in WB, 8′ box	4×2	SRW or DRW	169.1 in	260.8 in	83.5 in (SRW) / 96.5 in (DRW)	78.4 in (SRW) / 77.1 in (DRW)	11.2 in (SRW) / 10.2 in (DRW)	53.6 ft
Crew Cab 169.5-in WB, 8′ box	4×4	SRW or DRW	169.3 in	260.8 in	83.5 in (SRW) / 96.5 in (DRW)	78.4 in (SRW) / 79.3 in (DRW)	11.5 in (SRW) / 12.3 in (DRW)	53.7 ft
Mega Cab 160.5-in WB, 6’4″ box	4×4	SRW or DRW	160.4 in	249.9 in	83.5 in (SRW) / 96.5 in (DRW)	78.5 in (SRW) / 78.9 in (DRW)	Varies by SRW/DRW	See OEM table

Interior dimensions (by cab)

Measurement	Regular Cab (Front)	Crew Cab (Front)	Mega Cab (Front)	Crew Cab (Rear)	Mega Cab (Rear)
Headroom	39.8 in	40.9 in	40.9 in	39.8 in	40.3 in
Legroom	40.9 in	40.9 in	40.9 in	40.2 in	43.1 in
Shoulder room	65.9 in	65.9 in	65.9 in	65.6 in	65.6 in
Hip room	62.9 in	62.9 in	62.9 in	62.7 in	62.8 in

Interior volume (by cab)

Cab	Front volume (cu ft)	Rear volume (cu ft)
Regular Cab	62.5	NA
Crew Cab	63.9	60.7
Mega Cab	63.9	66.0

Understanding the Trim Lineup

Think of the 2026 Ram Heavy Duty lineup as three lanes: work trucks, comfort-forward daily/tow rigs, and off-road specialty builds. The hard part isn’t picking the “best” trim. It’s picking the trim that matches how you actually use a heavy-duty truck.

For many buyers, the smartest move is choosing the configuration first (2500 vs 3500, diesel vs gas, cab/bed), then picking the trim that gives you the interior and tech you actually want. A loaded Big Horn or Laramie can be a better real-world fit than stretching for a luxury trim if the extra features don’t matter to you day-to-day.

Trim-by-Trim Deep Dive

Tradesman

Starting MSRP: $46,485 (2500) / $47,785 (3500)

Tradesman is the foundation of the Ram Heavy Duty lineup. This is the trim for buyers who care about
capability, durability, and price more than chrome or luxury finishes. It’s the most flexible starting
point for work trucks, fleets, and owner-operators who want to spec towing and payload first and add
comfort only where it matters.

Key standard features

6.4L HEMI V8 with 8-speed automatic transmission
LED headlights and taillamps
Uconnect 5 infotainment system
Trailer brake controller
Durable vinyl or cloth seating (configuration dependent)

Major available options & packages

Package	What it adds (summary)
Bed Utility Group	LED bed lighting, deployable bed step, spray-in bedliner
Fifth-Wheel / Gooseneck Prep Group	Factory tow prep hardware for heavy trailers
Safety Group	Expanded driver-assist features beyond base safety equipment
Power Wagon Equipment Group	Give you all the Power Wagon hardware on the Tradesman trim. Suspension, winch, lockers, skid plates, fender flares, etc.

Black Express

Starting MSRP: $52,600

Black Express is built for buyers who want a Tradesman-based truck that doesn’t look like a fleet special.
It’s a value-focused appearance trim that keeps the Heavy Duty fundamentals intact while adding visual
upgrades that make it feel more personal without a big jump in price.

Key standard features

Tradesman mechanical and capability foundation
Black exterior accents and wheels
LED lighting
Uconnect 5 infotainment system

Major available options & packages

Package	What it adds (summary)
Bed Utility Group	Improved cargo management and lighting
Fifth-Wheel / Gooseneck Prep Group	Heavy-duty trailer compatibility

Warlock

Starting MSRP: $56,325

Warlock is the new off-road entry point into the Ram Heavy Duty lineup. It’s aimed at buyers who need
a tougher stance and trail-ready hardware for job sites, snow, and rough terrain, but don’t want to
pay Rebel prices.

Key standard features

4×4 drivetrain only
Anti-spin rear differential
Bilstein shocks
Underbody skid plates
34-inch all-terrain tires

Major available options & packages

Package	What it adds (summary)
Safety Group	Advanced driver-assist technologies
Tow Technology Group	Enhanced cameras and trailer guidance features

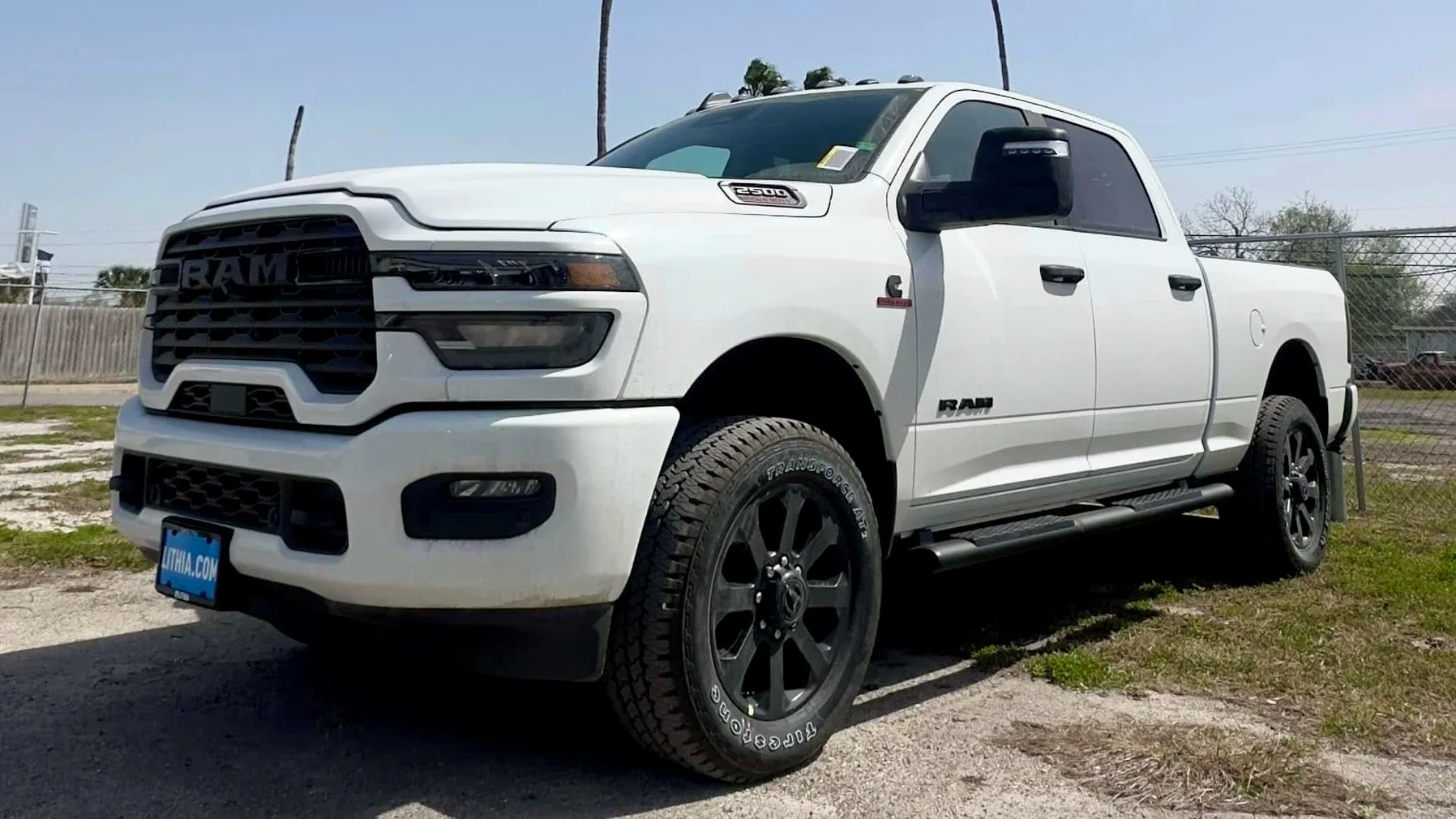

2025 Ram 2500 Big Horn Night Edition Crew Cab 4×4. (Diana Rhoades).

Big Horn / Lone Star

Starting MSRP: $50,480 (2500) / $51,780 (3500)

Big Horn (Lone Star in select markets) is the volume trim for Ram Heavy Duty. It’s designed for buyers
who want a more comfortable daily driver while keeping serious towing and payload capability.
With the right packages, it can be configured to feel nearly as premium as higher trims.

Key standard features

Cloth seating with upgraded interior materials
Uconnect 5 system with larger touchscreen availability
Chrome exterior accents
Power accessories and added storage

Major available options & packages

Package	What it adds (summary)
Big Horn Level 1 / Level 2	Progressively adds comfort, tech, and interior upgrades
Tow Technology Group	Trailer reverse guidance, additional cameras
Safety Group	Expanded driver-assist systems

Laramie

Starting MSRP: $62,185 (2500) / $63,485 (3500)

Laramie is the sweet spot for buyers who use their Heavy Duty as both a work tool and a daily driver.
It delivers a noticeably more upscale interior and broader tech availability without jumping all the
way to full luxury pricing.

Key standard features

Leather-trimmed seating
Larger Uconnect touchscreen availability
Premium interior materials and trim
Power-adjustable front seats

Major available options & packages

Package	What it adds (summary)
Safety Group	Advanced driver-assist features
Tow Technology Group	Enhanced towing cameras and trailer systems
Night Edition	Black exterior accents and wheels

Rebel

Starting MSRP: $69,680

Rebel is the balanced off-road Heavy Duty. It’s for buyers who want real trail capability and aggressive
styling but still plan to tow and daily-drive their truck. Rebel sits between the value-focused Warlock
and the extreme Power Wagon.

Key standard features

4×4 drivetrain
Off-road suspension tuning
Unique Rebel exterior and interior styling
All-terrain tires

Major available options & packages

Package	What it adds (summary)
Rebel Level 1 Equipment Group	Upgraded interior materials and tech features
Tow Technology Group	Advanced trailer assistance features

Power Wagon

Starting MSRP: $72,880

Power Wagon is the most off-road-capable production Heavy Duty pickup Ram offers. It’s built for buyers
who prioritize trail performance, control, and recovery gear over maximum towing numbers. This is a
specialty tool, not a tow-rating champion.

Key standard features

4×4 only
Electronic locking differentials
Disconnecting front sway bar
Factory winch

Major available options & packages

Package	What it adds (summary)
Power Wagon Level 1 / Level 2	Interior luxury, larger screens, advanced tech

Limited

Starting MSRP: $74,245 (2500) / $75,545 (3500)

Limited is the luxury flagship for the Ram Heavy Duty lineup. It’s aimed at buyers who spend long hours
in their truck and want top-tier comfort, technology, and refinement without giving up real HD capability.

Key standard features

Premium leather seating
Large Uconnect touchscreen with available passenger display
Digital instrument cluster
Advanced audio and interior trim

Major available options & packages

Package	What it adds (summary)
Limited Level 1 Equipment Group	Top-tier towing tech, safety features, and convenience equipment

Limited Longhorn

Starting MSRP: $74,245 (2500) / $75,545 (3500)

Limited Longhorn delivers the same level of luxury as Limited, but with a western-themed design language.
It’s for buyers who want premium materials and a distinctive look that stands apart from the standard
luxury trim.

Key standard features

Premium leather interior with Longhorn design cues
Advanced Uconnect system with large display availability
Digital rearview mirror availability

Major available options & packages

Package	What it adds (summary)
Longhorn Level 1 Equipment Group	Expanded towing tech, safety systems, and premium convenience features

2026 ram heavy duty towing — 2025 Ram 3500 Heavy Duty Laramie – Black (Ram)

Detailed Towing Tables (Full OEM Charts)

These tables are converted from the official Ram towing specification guides. Use the jump links to get to the exact cab/bed/drivetrain/trim section you need.

Ram 2500 Heavy Duty — Full Towing Charts

Jump to a table section:

RAM 2500 4X2 CREW CAB BIG HORN/LONE STAR 6’4″ BOX
RAM 2500 4X2 CREW CAB BIG HORN/LONE STAR 8’0″ BOX
RAM 2500 4X2 CREW CAB BIG HORN/LONE STAR W/O 6’4″ BOX
RAM 2500 4X2 CREW CAB BIG HORN/LONE STAR W/O 8’0″ BOX
RAM 2500 4X2 CREW CAB LARAMIE 6’4″ BOX
RAM 2500 4X2 CREW CAB LARAMIE 6’4″ BOX W/ RAMBOX
RAM 2500 4X2 CREW CAB LARAMIE 8’0″ BOX
RAM 2500 4X2 CREW CAB LIMITED 6’4″ BOX
RAM 2500 4X2 CREW CAB LIMITED 6’4″ BOX W/ RAMBOX
RAM 2500 4X2 CREW CAB LIMITED 8’0″ BOX
RAM 2500 4X2 CREW CAB TRADESMAN 6’4″ BOX
RAM 2500 4X2 CREW CAB TRADESMAN 8’0″ BOX
RAM 2500 4X2 CREW CAB TRADESMAN W/O 6’4″ BOX
RAM 2500 4X2 CREW CAB TRADESMAN W/O 8’0″ BOX
RAM 2500 4X2 REG CAB BIG HORN/LONE STAR 8’0” BOX
RAM 2500 4X2 REG CAB BIG HORN/LONE STAR W/O BOX
RAM 2500 4X2 REG CAB TRADESMAN 8’0″ BOX
RAM 2500 4X2 REG CAB TRADESMAN W/O BOX
RAM 2500 4X4 CREW CAB BIG HORN/LONE STAR 6’4″ BOX
RAM 2500 4X4 CREW CAB BIG HORN/LONE STAR W/O 6’4″ BOX
RAM 2500 4X4 CREW CAB BIG HORN/LONE STAR W/O 8’0″ BOX
RAM 2500 4X4 CREW CAB LARAMIE 6’4″ BOX
RAM 2500 4X4 CREW CAB LARAMIE 6’4″ BOX W/ RAMBOX
RAM 2500 4X4 CREW CAB LARAMIE 8’0″ BOX
RAM 2500 4X4 CREW CAB LIMITED 6’4″ BOX
RAM 2500 4X4 CREW CAB LIMITED 6’4″ BOX W/ RAMBOX
RAM 2500 4X4 CREW CAB LIMITED 8’0″ BOX
RAM 2500 4X4 CREW CAB POWER WAGON 6’4″ BOX
RAM 2500 4X4 CREW CAB POWER WAGON 6’4″ BOX W/ RAMBOX
RAM 2500 4X4 CREW CAB REBEL 6’4″ BOX
RAM 2500 4X4 CREW CAB REBEL 6’4″ BOX W/ RAMBOX
RAM 2500 4X4 CREW CAB TRADESMAN 6’4″ BOX
RAM 2500 4X4 CREW CAB TRADESMAN 8’0″ BOX
RAM 2500 4X4 CREW CAB TRADESMAN 8’0″ BOX PAYLOAD UPG
RAM 2500 4X4 CREW CAB TRADESMAN PW 6’4″ BOX
RAM 2500 4X4 CREW CAB TRADESMAN W/O 6’4″ BOX
RAM 2500 4X4 CREW CAB TRADESMAN W/O 8’0″ BOX
RAM 2500 4X4 MEGA CAB LARAMIE 6’4″ BOX
RAM 2500 4X4 MEGA CAB LARAMIE 6’4″ BOX W/ RAMBOX
RAM 2500 4X4 MEGA CAB LIMITED 6’4″ BOX
RAM 2500 4X4 MEGA CAB LIMITED 6’4″ BOX W/ RAMBOX
RAM 2500 4X4 REG CAB BIG HORN/LONE STAR 8’0″ BOX
RAM 2500 4X4 REG CAB BIG HORN/LONE STAR W/O BOX
RAM 2500 4X4 REG CAB TRADESMAN 8’0″ BOX
RAM 2500 4X4 REG CAB TRADESMAN 8’0″ BOX PAYLOAD UPG
RAM 2500 4X4 REG CAB TRADESMAN W/O BOX

RAM 2500 4X2 CREW CAB BIG HORN/LONE STAR 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3500	6499	3647	2851	5500	6390	22050	15210
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3500	6499	3647	2851	5500	6390	24250	17410
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3400	6499	3647	2851	5500	6390	22050	15210
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3400	6499	3647	2851	5500	6390	24250	17410
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2390	7513	4561	2952	5500	6040	27870	19980
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3530	7507	4554	2953	5500	6040	27870	19990
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2490	7507	4554	2953	5500	6040	27870	19990

RAM 2500 4X2 CREW CAB BIG HORN/LONE STAR 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3470	6532	3770	2761	5500	6390	22050	15180
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3470	6532	3770	2761	5500	6390	24250	17380
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3370	6532	3770	2761	5500	6390	22050	15180
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3370	6532	3770	2761	5500	6390	24250	17380
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2270	7631	4664	2966	5500	6040	28010	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3410	7625	4657	2967	5500	6040	28000	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2370	7625	4657	2967	5500	6040	28000	20000
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3140	6859	4081	2777	5500	6390	22050	14850
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3140	6859	4081	2777	5500	6390	24250	17050
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3040	6859	4081	2777	5500	6390	22050	14850
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3040	6859	4081	2777	5500	6390	24250	17050
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3150	7887	4969	2917	6000	6040	26580	18350
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2020	7882	4969	2912	6000	6040	26520	18270
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2110	7887	4969	2917	6000	6040	26580	18320

RAM 2500 4X2 CREW CAB BIG HORN/LONE STAR W/O 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3900	6101	3726	2374	5500	6390	22050	15040
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3900	6101	3726	2374	5500	6390	24250	17240
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3800	6101	3726	2374	5500	6390	22050	15040
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3800	6101	3726	2374	5500	6390	24250	17240

RAM 2500 4X2 CREW CAB BIG HORN/LONE STAR W/O 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3840	6164	0	2363	5500	6390	22050	14910
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3840	6164	3800	2363	5500	6390	24250	17110
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3740	6164	3800	2363	5500	6390	22050	14910
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3740	6164	3800	2363	5500	6390	24250	17110

RAM 2500 4X2 CREW CAB LARAMIE 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3510	6487	3665	2821	5500	6390	22050	15220
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3510	6487	3665	2821	5500	6390	24250	17420
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3410	6487	3665	2821	5500	6390	22050	15220
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3410	6487	3665	2821	5500	6390	24250	17420
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2380	7515	4566	2949	5500	6040	27870	19980
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3530	7509	4559	2950	5500	6040	27870	19990
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2490	7509	4559	2950	5500	6040	27870	19990

RAM 2500 4X2 CREW CAB LARAMIE 6’4″ BOX W/ RAMBOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3380	6615	3663	2951	5500	6390	22050	15090
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3380	6615	3663	2951	5500	6390	24250	17290
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3280	6615	3663	2951	5500	6390	22050	15090
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3280	6615	3663	2951	5500	6390	24250	17290
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2260	7643	4564	3079	5500	6040	27870	19850
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3400	7637	4557	3080	5500	6040	27870	19860
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2360	7637	4557	3080	5500	6040	27870	19860

RAM 2500 4X2 CREW CAB LARAMIE 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3370	6627	3777	2849	5500	6390	22050	15080
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3370	6627	3777	2849	5500	6390	24250	17280
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3270	6627	3777	2849	5500	6390	22050	15080
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3270	6627	3777	2849	5500	6390	24250	17280
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2210	7688	4692	2995	5500	6040	28010	19950
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3360	7682	4685	2996	5500	6040	28010	19950
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2320	7682	4685	2996	5500	6040	28010	19950

RAM 2500 4X2 CREW CAB LIMITED 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3190	6807	3800	3006	5500	6390	22050	14900
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3190	6807	3800	3006	5500	6390	24250	17100
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3090	6807	3800	3006	5500	6390	22050	14900
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3090	6807	3800	3006	5500	6390	24250	17100
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2070	7830	4714	3115	5500	6040	27000	18790
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3220	7824	4707	3116	5500	6040	27870	19670
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2180	7824	4707	3116	5500	6040	27870	19670

RAM 2500 4X2 CREW CAB LIMITED 6’4″ BOX W/ RAMBOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3060	6942	3798	3144	5500	6390	22050	14770
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3060	6942	3798	3144	5500	6390	24250	16970
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2960	6942	3798	3144	5500	6390	22050	14770
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2960	6942	3798	3144	5500	6390	24250	16970
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1930	7966	4712	3253	5500	6040	25630	17290
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3080	7960	4705	3254	5500	6040	27870	19530
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2040	7960	4705	3254	5500	6040	26800	18460

RAM 2500 4X2 CREW CAB LIMITED 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3040	6964	3942	3021	5500	6390	22050	14750
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3040	6964	3942	3021	5500	6390	24250	16950
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2940	6964	3942	3021	5500	6390	22050	14750
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2940	6964	3942	3021	5500	6390	24250	16950
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1970	7933	4798	3135	5500	6040	26000	17690
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3110	7927	4791	3136	5500	6040	28010	19710
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2070	7927	4791	3136	5500	6040	27170	18870

RAM 2500 4X2 CREW CAB TRADESMAN 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3610	6394	3610	2783	5500	6000	22050	15320
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3610	6394	3610	2783	5500	6000	24250	17520
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3500	6398	3609	2788	5500	6000	22050	15310
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3500	6398	3609	2788	5500	6000	24250	17510
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2460	7435	4540	2894	5500	6040	27810	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3600	7435	4543	2892	5500	6040	27810	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2560	7435	4543	2892	5500	6040	27810	20000

RAM 2500 4X2 CREW CAB TRADESMAN 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3470	6530	3752	2777	5500	6390	22050	15180
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3470	6530	3752	2777	5500	6390	24250	17380
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3360	6537	3756	2781	5500	6390	22050	15170
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3360	6537	3756	2781	5500	6390	24250	17370
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2350	7553	4681	2872	5500	6040	27930	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3500	7539	4668	2870	5500	6000	27910	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2460	7539	4668	2870	5500	6000	27910	20000

RAM 2500 4X2 CREW CAB TRADESMAN W/O 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3940	6055	3729	2325	5500	6390	22050	15090
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3940	6055	3729	2325	5500	6390	24250	17290
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3840	6055	3729	2325	5500	6390	22050	15090
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3840	6055	3729	2325	5500	6390	24250	17290

RAM 2500 4X2 CREW CAB TRADESMAN W/O 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3950	6049	3798	2250	5500	6390	22050	15020
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3950	6049	3798	2250	5500	6390	24250	17220
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3850	6053	3799	2253	5500	6390	22050	15020
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3850	6053	3799	2253	5500	6390	24250	17220

RAM 2500 4X2 REG CAB BIG HORN/LONE STAR 8’0” BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3860	6135	3521	2614	5500	6500	22050	15570
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3860	6135	3521	2614	5500	6500	24250	17770
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3760	6135	3521	2614	5500	6500	22050	15570
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3760	6135	3521	2614	5500	6500	24250	17770

RAM 2500 4X2 REG CAB BIG HORN/LONE STAR W/O BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	4370	5629	3489	2140	5500	6500	22050	15420
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	4370	5629	3489	2140	5500	6500	24250	17620
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	4270	5629	3489	2140	5500	6500	22050	15420
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	4270	5629	3489	2140	5500	6500	24250	17620

RAM 2500 4X2 REG CAB TRADESMAN 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3930	6066	3477	2588	5500	6500	22050	15640
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3930	6066	3477	2588	5500	6500	24250	17840
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3830	6066	3477	2588	5500	6500	22050	15640
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3830	6066	3477	2588	5500	6500	24250	17840

RAM 2500 4X2 REG CAB TRADESMAN W/O BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	4420	5583	3532	2051	5500	6500	22050	15470
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	4420	5583	3532	2051	5500	6500	24250	17670
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	4310	5586	3530	2055	5500	6500	22050	15470
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	4310	5586	3530	2055	5500	6500	24250	17670

RAM 2500 4X4 CREW CAB BIG HORN/LONE STAR 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3260	6742	3943	2799	5500	6390	22050	14970
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3260	6742	3943	2799	5500	6390	24250	17170
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3160	6741	3950	2791	5500	6390	22050	14970
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3160	6741	3950	2791	5500	6390	24250	17170
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3270	7769	4854	2914	6000	6040	28110	19970
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2130	7771	4863	2908	6000	6040	27590	19440
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2230	7769	4854	2914	6000	6040	28110	19970

RAM 2500 4X4 CREW CAB BIG HORN/LONE STAR W/O 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3580	6418	4045	2373	5500	6390	22050	14720
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3580	6418	4045	2373	5500	6390	24250	16920
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3480	6420	4046	2374	5500	6390	22050	14720
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3480	6420	4046	2374	5500	6390	24250	16920

RAM 2500 4X4 CREW CAB BIG HORN/LONE STAR W/O 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3480	6516	4119	2396	5500	6390	22050	14550
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3480	6516	4119	2396	5500	6390	24250	16720
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3380	6516	4119	2396	5500	6390	22050	14550
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3380	6516	4119	2396	5500	6390	24250	16720

RAM 2500 4X4 CREW CAB LARAMIE 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3120	6877	4001	2876	5500	6390	22050	14830
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3120	6877	4001	2876	5500	6390	24250	17030
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3010	6885	4004	2880	5500	6390	22050	14820
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3010	6885	4004	2880	5500	6390	24250	17020
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3170	7871	4911	2959	6000	6040	28110	19860
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2020	7883	4923	2960	6000	6040	26470	18210
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2130	7871	4911	2959	6000	6040	27700	19450

RAM 2500 4X4 CREW CAB LARAMIE 6’4″ BOX W/ RAMBOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3040	6957	3950	3007	5500	6390	22050	14750
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3040	6957	3950	3007	5500	6390	24250	16950
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2970	6927	3940	2986	5500	6390	22050	14780
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2970	6927	3940	2986	5500	6390	24250	16980
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3030	8009	4880	3128	6000	6040	28110	19730
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1880	8015	4888	3127	6000	6040	25130	16740
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1990	8009	4880	3128	6000	6040	26300	17920

RAM 2500 4X4 CREW CAB LARAMIE 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3010	6989	4091	2898	5500	6390	22050	14720
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3010	6989	4091	2898	5500	6390	24250	16920
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2910	6989	4090	2898	5500	6390	22050	14720
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2910	6989	4090	2898	5500	6390	24250	16920
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3010	8034	5010	3023	6000	6040	26580	18170
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1870	8034	5013	3021	6000	6040	24980	16570
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1970	8034	5010	3023	6000	6040	26090	17680

RAM 2500 4X4 CREW CAB LIMITED 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	2920	7080	4079	3001	5500	6390	22050	14630
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	2920	7080	4079	3001	5500	6390	24250	16830
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2820	7080	4079	3001	5500	6390	22050	14630
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2820	7080	4079	3001	5500	6390	24250	16790
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3000	8038	4994	3043	6000	6040	28110	19700
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1840	8057	4959	3097	6000	6040	24710	16270
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1960	8038	4994	3043	6000	6040	26010	17590

RAM 2500 4X4 CREW CAB LIMITED 6’4″ BOX W/ RAMBOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	2780	7219	4078	3140	5500	6390	22050	14490
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	2780	7219	4078	3140	5500	6390	24250	16660
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2680	7219	4078	3140	5500	6390	22050	14490
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2680	7219	4078	3140	5500	6390	24250	16660
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	2870	8169	4982	3186	6000	6040	28110	19570
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1710	8185	4974	3210	6000	6040	23420	14860
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1830	8169	4982	3186	6000	6040	24690	16140

RAM 2500 4X4 CREW CAB LIMITED 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	2730	7272	4222	3050	5500	6390	22050	14440
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	2730	7272	4222	3050	5500	6390	24250	16600
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2630	7272	4222	3050	5500	6390	22050	14440
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2630	7272	4222	3050	5500	6390	24250	16600
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	2760	8276	5086	3190	6000	6040	26580	17930
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1620	8282	5093	3189	6000	6040	22470	13810
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1720	8276	5086	3190	6000	6040	23640	14990

RAM 2500 4X4 CREW CAB POWER WAGON 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	8565	1690	6875	3967	2907	4750	4470	17800	10550
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	8565	1530	7032	4172	2860	4750	6200	18000	10590

RAM 2500 4X4 CREW CAB POWER WAGON 6’4″ BOX W/ RAMBOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	8565	1560	7007	3955	3052	4750	4470	17800	10420
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	8565	1400	7165	4159	3005	4750	6200	18000	10460

RAM 2500 4X4 CREW CAB REBEL 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	2990	7008	4049	2959	5500	6170	22050	14700
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	2990	7008	4049	2959	5500	6170	24250	16900
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2890	7011	4052	2958	5500	6170	22050	14700
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2890	7011	4052	2958	5500	6170	24250	16900
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3070	7972	4917	3055	6000	6040	28110	19760
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1920	7979	4925	3054	6000	6040	25490	17140
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2030	7972	4917	3055	6000	6040	26670	18320

RAM 2500 4X4 CREW CAB REBEL 6’4″ BOX W/ RAMBOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	2960	7042	3955	3086	5500	6170	22050	14670
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	2960	7042	3955	3086	5500	6170	24250	16870
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	2860	7044	3958	3086	5500	6170	22050	14670
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	2860	7044	3958	3086	5500	6170	24250	16830
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	2950	8086	4934	3151	6000	6040	28110	19650
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1810	8093	4942	3150	6000	6040	24340	15870
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1910	8086	4934	3151	6000	6040	25520	17060

RAM 2500 4X4 CREW CAB TRADESMAN 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3320	6680	3887	2792	5500	6000	22050	15030
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3320	6680	3887	2792	5500	6000	24250	17230
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3210	6689	3897	2791	5500	6000	22050	15020
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3210	6689	3897	2791	5500	6000	24250	17220
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3300	7742	4807	2935	5750	6000	28110	19990
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2170	7728	4800	2927	5750	6000	28030	19930
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2260	7742	4807	2935	5750	6000	28110	19990

RAM 2500 4X4 CREW CAB TRADESMAN 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3110	6886	4059	2827	5500	6000	22050	14820
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3110	6886	4059	2827	5500	6000	24250	17020
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3020	6875	4055	2820	5500	6000	22050	14830
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3020	6875	4055	2820	5500	6000	24250	17030
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3160	7877	4959	2918	5750	6000	26580	18360
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2010	7888	4969	2919	5750	6000	26460	18190
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2120	7877	4959	2918	6000	6040	26580	18330

RAM 2500 4X4 CREW CAB TRADESMAN 8’0″ BOX PAYLOAD UPG

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4010	7025	4105	2920	5500	7000	22050	14680
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4010	7025	4105	2920	5500	7000	24250	16880

RAM 2500 4X4 CREW CAB TRADESMAN PW 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	8565	1570	6992	4149	2843	4750	6200	18000	10630

RAM 2500 4X4 CREW CAB TRADESMAN W/O 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3700	6295	3976	2318	5500	6390	22050	14850
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3700	6295	3976	2318	5500	6390	24250	17050
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3600	6295	3976	2318	5500	6390	22050	14850
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3600	6295	3976	2318	5500	6390	24250	17050

RAM 2500 4X4 CREW CAB TRADESMAN W/O 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3570	6434	4126	2308	5500	6390	22050	14640
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3570	6434	4126	2308	5500	6390	24250	16840
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3450	6451	4095	2356	5500	6390	22050	14620
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3450	6451	4095	2356	5500	6390	24250	16780

RAM 2500 4X4 MEGA CAB LARAMIE 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	2900	8137	5041	3096	6000	6040	24290	15810
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1790	8105	5009	3096	6000	6040	24210	15730
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1860	8137	5041	3096	6000	6040	24290	15780

RAM 2500 4X4 MEGA CAB LARAMIE 6’4″ BOX W/ RAMBOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	2830	8207	4967	3240	6000	6040	24290	15740
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1680	8219	4977	3241	6000	6040	23070	14480
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1790	8207	4967	3240	6000	6040	24290	15710

RAM 2500 4X4 MEGA CAB LIMITED 6’4″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	2810	8228	5106	3122	6000	6040	24290	15720
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1680	8217	5072	3144	6000	6040	23090	14500
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1770	8228	5106	3122	6000	6040	24080	15480

RAM 2500 4X4 MEGA CAB LIMITED 6’4″ BOX W/ RAMBOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	2540	8499	5120	3378	6000	6040	24290	15420
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	1430	8473	5080	3392	6000	6040	20510	11660
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	1500	8499	5120	3378	6000	6040	21360	12480

RAM 2500 4X4 REG CAB BIG HORN/LONE STAR 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3610	6390	3795	2594	5500	6390	22050	15320
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3610	6390	3795	2594	5500	6390	24250	17520
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3500	6402	3796	2605	5500	6390	22050	15310
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3500	6402	3796	2605	5500	6390	24250	17510
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3590	7449	4686	2763	6000	6040	27790	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2440	7459	4690	2768	6000	6040	27820	19990
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2550	7449	4686	2763	6000	6040	27820	20000

RAM 2500 4X4 REG CAB BIG HORN/LONE STAR W/O BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3990	6012	3801	2210	5500	6390	22050	15040
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3990	6012	3801	2210	5500	6390	24250	17240
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3890	6012	3801	2210	5500	6390	22050	15040
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3890	6012	3801	2210	5500	6390	24250	17240

RAM 2500 4X4 REG CAB TRADESMAN 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	3630	6374	3748	2626	5500	6390	22050	15340
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	3630	6374	3748	2626	5500	6390	24250	17540
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3510	6385	3755	2630	5500	6390	22050	15320
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3510	6385	3755	2630	5500	6390	24250	17520
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11040	3590	7446	4693	2753	5750	6000	27790	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	9900	2450	7449	4703	2745	5750	6000	27820	20000
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	10000	2550	7446	4693	2753	5750	6000	27820	20000

RAM 2500 4X4 REG CAB TRADESMAN 8’0″ BOX PAYLOAD UPG

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4580	6463	3764	2699	5500	7000	22050	15250
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4580	6463	3764	2699	5500	7000	24250	17450

RAM 2500 4X4 REG CAB TRADESMAN W/O BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	10000	4070	5926	3827	2098	5500	6390	22050	15130
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	10000	4070	5926	3827	2098	5500	6390	24250	17330
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	9900	3980	5923	3753	2170	5500	6390	22050	15130
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	9900	3980	5923	3753	2170	5500	6390	24250	17330

Ram 3500 Heavy Duty — Full Towing Charts

Jump to a table section:

RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR 6’4″ BOX SRW
RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR 8’0″ BOX DRW
RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR 8’0″ BOX SRW
RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR W/O 6’4″ BOX SRW
RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR W/O 8’0″ BOX SRW
RAM 3500 4X2 CREW CAB LARAMIE 6’4″ BOX SRW
RAM 3500 4X2 CREW CAB LARAMIE 6’4″ BOX W/ RAMBOX SRW
RAM 3500 4X2 CREW CAB LARAMIE 8’0″ BOX DRW
RAM 3500 4X2 CREW CAB LARAMIE 8’0″ BOX SRW
RAM 3500 4X2 CREW CAB LIMITED/LONG HORN 6’4″ BOX SRW
RAM 3500 4X2 CREW CAB LIMITED/LONG HORN 6’4″ BOX W/ RAMBOX SRW
RAM 3500 4X2 CREW CAB LIMITED/LONG HORN 8’0″ BOX DRW
RAM 3500 4X2 CREW CAB LIMITED/LONG HORN 8’0″ BOX SRW
RAM 3500 4X2 CREW CAB TRADESMAN 6’4″ BOX SRW
RAM 3500 4X2 CREW CAB TRADESMAN 8’0″ BOX DRW
RAM 3500 4X2 CREW CAB TRADESMAN 8’0″ BOX SRW
RAM 3500 4X2 CREW CAB TRADESMAN W/O 6’4″ BOX SRW
RAM 3500 4X2 CREW CAB TRADESMAN W/O 8’0” BOX SRW
RAM 3500 4X2 REG CAB BIG HORN/LONE STAR 8’0″ BOX DRW
RAM 3500 4X2 REG CAB BIG HORN/LONE STAR 8’0″ BOX SRW
RAM 3500 4X2 REG CAB BIG HORN/LONE STAR W/O 8’0″ BOX SRW
RAM 3500 4X2 REG CAB TRADESMAN 8’0″ BOX DRW
RAM 3500 4X2 REG CAB TRADESMAN 8’0″ BOX SRW
RAM 3500 4X2 REG CAB TRADESMAN W/O 8’0″ BOX
RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR 6’4″ BOX SRW
RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR 8’0″ BOX DRW
RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR 8’0″ BOX SRW
RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR W/O 6’4″ BOX SRW
RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR W/O 8’0″ BOX SRW
RAM 3500 4X4 CREW CAB LARAMIE 6’4″ BOX SRW
RAM 3500 4X4 CREW CAB LARAMIE 6’4″ BOX W/ RAMBOX SRW
RAM 3500 4X4 CREW CAB LARAMIE 8’0″ BOX DRW
RAM 3500 4X4 CREW CAB LARAMIE 8’0″ BOX SRW
RAM 3500 4X4 CREW CAB LIMITED/LONG HORN 6’4″ BOX SRW
RAM 3500 4X4 CREW CAB LIMITED/LONG HORN 6’4″ BOX W/ RAMBOX SRW
RAM 3500 4X4 CREW CAB LIMITED/LONG HORN 8’0″ BOX DRW
RAM 3500 4X4 CREW CAB LIMITED/LONG HORN 8’0″ BOX SRW
RAM 3500 4X4 CREW CAB TRADESMAN 6’4″ BOX SRW
RAM 3500 4X4 CREW CAB TRADESMAN 8’0″ BOX DRW
RAM 3500 4X4 CREW CAB TRADESMAN 8’0″ BOX SRW
RAM 3500 4X4 CREW CAB TRADESMAN W/O 6’4″ BOX SRW
RAM 3500 4X4 CREW CAB TRADESMAN W/O 8’0” BOX SRW
RAM 3500 4X4 MEGA CAB LARAMIE 6’4″ BOX DRW
RAM 3500 4X4 MEGA CAB LARAMIE 6’4″ BOX SRW
RAM 3500 4X4 MEGA CAB LIMITED/LONG HORN 6’4″ BOX DRW
RAM 3500 4X4 MEGA CAB LIMITED/LONG HORN 6’4″ BOX SRW
RAM 3500 4X4 MEGA CAB LIMITED/LONG HORN 6’4″ BOX W/ RAMBOX SRW
RAM 3500 4X4 REG CAB BIG HORN/LONE STAR 8’0″ BOX SRW
RAM 3500 4X4 REG CAB BIG HORN/LONE STAR W/O 8’0″ BOX SRW
RAM 3500 4X4 REG CAB TRADESMAN 8’0″ BOX DRW
RAM 3500 4X4 REG CAB TRADESMAN 8’0″ BOX SRW
RAM 3500 4X4 REG CAB TRADESMAN W/O 8’0″ BOX

RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4570	6467	3641	2826	5500	7000	22000	15190
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4570	6467	3641	2826	5500	7000	24240	17430
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11500	4060	7442	4511	2930	5500	7000	31850	24070

RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	7070	6932	3774	3157	5500	9750	22600	15330
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	7070	6932	3774	3157	5500	9750	25000	17730
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5910	8089	4697	3392	5500	9750	43040	34610
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	5350	8153	4729	3424	5500	9750	41870	33370

RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11150	4600	6546	3738	2808	5500	7000	22000	15110
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11150	4600	6546	3738	2808	5500	7000	24240	17350
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12000	4390	7612	4666	2945	5500	7000	33530	25580

RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR W/O 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	5020	6024	3693	2331	5500	7000	22000	15070
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	5020	6024	3693	2331	5500	7000	24240	17310

RAM 3500 4X2 CREW CAB BIG HORN/LONE STAR W/O 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11150	5110	6036	3769	2267	5500	7000	22000	14980
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11150	5110	6036	3769	2267	5500	7000	24240	17220

RAM 3500 4X2 CREW CAB LARAMIE 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4450	6588	3718	2869	5500	7000	22000	15070
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4450	6588	3718	2869	5500	7000	24240	17310
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11500	3940	7557	4582	2974	5500	7000	31850	23950

RAM 3500 4X2 CREW CAB LARAMIE 6’4″ BOX W/ RAMBOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4340	6695	3710	2985	5500	7000	22000	14960
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4340	6695	3710	2985	5500	7000	24240	17200
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11500	3840	7663	4573	3089	5500	7000	31310	23310

RAM 3500 4X2 CREW CAB LARAMIE 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	6930	7074	3836	3237	5500	9750	22600	15190
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	6930	7074	3836	3237	5500	9750	25000	17590
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5860	8136	4724	3412	5500	9750	43040	34560
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	5360	8138	4725	3413	5500	9750	41960	33480

RAM 3500 4X2 CREW CAB LARAMIE 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11150	4530	6620	3740	2880	5500	7000	22000	15040
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11150	4530	6620	3740	2880	5500	7000	24240	17280
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12000	4310	7690	4712	2977	5500	7000	33530	25500

RAM 3500 4X2 CREW CAB LIMITED/LONG HORN 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4250	6790	3805	2985	5500	7000	22000	14870
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4250	6790	3805	2985	5500	7000	24240	17110
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11500	3670	7832	4708	3124	5500	7000	31210	23000

RAM 3500 4X2 CREW CAB LIMITED/LONG HORN 6’4″ BOX W/ RAMBOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4100	6935	3803	3132	5500	7000	22000	14720
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4100	6935	3803	3132	5500	7000	24240	16960
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11500	3520	7977	4706	3271	5500	7000	31350	23000

RAM 3500 4X2 CREW CAB LIMITED/LONG HORN 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	6680	7324	4035	3289	5500	9750	22600	14940
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	6680	7324	4035	3289	5500	9750	25000	17340
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5560	8440	4879	3560	5500	9750	43040	34260
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	5060	8442	4880	3561	5500	9750	40240	31450

RAM 3500 4X2 CREW CAB LIMITED/LONG HORN 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11150	4220	6928	3974	2954	5500	7000	22000	14730
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11150	4220	6928	3974	2954	5500	7000	24240	16970
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12000	4050	7951	4893	3057	5500	7000	33020	24720

RAM 3500 4X2 CREW CAB TRADESMAN 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4580	6455	3636	2818	5500	7000	22000	15200
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4580	6455	3636	2818	5500	7000	24240	17440
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11500	4040	7459	4501	2957	5500	7000	31850	24050

RAM 3500 4X2 CREW CAB TRADESMAN 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	6990	7013	3822	3190	5500	9750	22600	15250
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	6990	7013	3822	3190	5500	9750	25000	17650
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5890	8110	4724	3385	5500	9750	43040	34590
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	5390	8111	4725	3386	5500	9750	42110	33650

RAM 3500 4X2 CREW CAB TRADESMAN 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11150	4520	6628	3760	2867	5500	7000	22000	15030
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11150	4520	6628	3760	2867	5500	7000	24240	17270
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12000	4400	7603	4647	2956	5500	7000	33530	25590

RAM 3500 4X2 CREW CAB TRADESMAN W/O 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	5030	6014	3690	2324	5500	7000	22000	15080
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	5030	6014	3690	2324	5500	7000	24240	17320

RAM 3500 4X2 CREW CAB TRADESMAN W/O 8’0” BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11150	5050	6099	3819	2280	5500	7000	22000	14920
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11150	5050	6099	3819	2280	5500	7000	24240	17160

RAM 3500 4X2 REG CAB BIG HORN/LONE STAR 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	7540	6456	3498	2957	5500	9750	22600	15800
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	7540	3498	2957	5500	9750	25000	18200	3.73
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	7250	6751	3780	2971	5500	9750	25000	17910
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	6060	7937	4704	3232	6000	9750	45000	36720
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	5540	7961	4704	3256	6000	9750	42960	34660

RAM 3500 4X2 REG CAB BIG HORN/LONE STAR 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	5000	6035	3449	2586	5500	7000	22000	15620
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	5000	6035	3449	2586	5500	7000	24240	17860

RAM 3500 4X2 REG CAB BIG HORN/LONE STAR W/O 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	5520	5524	3487	2037	5500	7000	22000	15480
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	5520	5524	3487	2037	5500	7000	24240	17720

RAM 3500 4X2 REG CAB TRADESMAN 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	7590	6408	3449	2958	5500	9750	22600	15850
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	7590	6408	3449	2958	5500	9750	25000	18250

RAM 3500 4X2 REG CAB TRADESMAN 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4970	6072	3431	2640	5500	7000	22000	15590
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4970	6072	3431	2640	5500	7000	24240	17830

RAM 3500 4X2 REG CAB TRADESMAN W/O 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	5490	5551	3470	2081	5500	7000	22000	15450
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	5490	5551	3470	2081	5500	7000	24240	17690

RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4290	6752	3922	2829	5500	7000	22000	14910
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4290	6752	3922	2829	5500	7000	24240	17150
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11800	4050	7746	4796	2949	6000	7000	31820	23730

RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	6690	7313	4065	3248	5500	9750	22600	14950
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	6690	7313	4065	3248	5500	9750	25000	17350
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5560	8435	5026	3408	6000	9750	42800	34020
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	4950	8545	5086	3459	6000	9750	39650	30760

RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11440	4520	6916	4035	2880	5500	7000	22000	14740
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11440	4520	6916	4035	2880	5500	7000	24240	16980
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12300	4370	7933	4944	2989	6000	7000	33610	25340

RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR W/O 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4720	6319	3961	2358	5500	7000	22000	14770
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4720	6319	3961	2358	5500	7000	24240	17010

RAM 3500 4X4 CREW CAB BIG HORN/LONE STAR W/O 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11440	5000	6443	4097	2346	5500	7000	22000	14580
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11440	5000	6443	4097	2346	5500	7000	24240	16820

RAM 3500 4X4 CREW CAB LARAMIE 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4160	6884	3948	2936	5500	7000	22000	14780
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4160	6884	3948	2936	5500	7000	24240	17020
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11800	3810	7991	4903	3088	6000	7000	31450	23120

RAM 3500 4X4 CREW CAB LARAMIE 6’4″ BOX W/ RAMBOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4050	6992	3940	3051	5500	7000	22000	14670
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4050	6992	3940	3051	5500	7000	24240	16910
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11800	3740	8060	4843	3217	6000	7000	31440	23000

RAM 3500 4X4 CREW CAB LARAMIE 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	6610	7388	4134	3253	5500	9750	22600	14870
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	6610	7388	4134	3253	5500	9750	25000	17270
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5460	8544	5083	3461	6000	9750	42800	33920
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	4980	8521	5080	3440	6000	9750	39790	30930

RAM 3500 4X4 CREW CAB LARAMIE 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11440	4400	7039	4121	2917	5500	7000	22000	14620
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11440	4400	7039	4121	2917	5500	7000	24240	16860
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12300	4180	8116	5065	3051	6000	7000	33610	25150

RAM 3500 4X4 CREW CAB LIMITED/LONG HORN 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	3870	7174	4114	3060	5500	7000	22000	14490
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	3870	7174	4114	3060	5500	7000	24240	16730
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11800	3650	8152	4974	3178	6000	7000	31530	23000

RAM 3500 4X4 CREW CAB LIMITED/LONG HORN 6’4″ BOX W/ RAMBOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	3720	7319	4112	3207	5500	7000	22000	14340
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	3720	7319	4112	3207	5500	7000	24240	16580
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11800	3500	8304	4977	3326	6000	7000	31680	23000

RAM 3500 4X4 CREW CAB LIMITED/LONG HORN 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	6350	7646	4261	3385	5500	9750	22600	14610
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	6350	7646	4261	3385	5500	9750	25000	17010
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5300	8698	5167	3531	6000	9750	42120	33080
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	4780	8721	5176	3545	6000	9750	38650	29590

RAM 3500 4X4 CREW CAB LIMITED/LONG HORN 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11440	4130	7314	4248	3066	5500	7000	22000	14350
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11440	4130	7314	4248	3066	5500	7000	24240	16590
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12300	3900	8402	5187	3214	6000	7000	32460	23720

RAM 3500 4X4 CREW CAB TRADESMAN 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4250	6794	3911	2882	5500	7000	22000	14870
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4250	6794	3911	2882	5500	7000	24240	17110
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11800	3970	7827	4819	3008	6000	7000	31820	23650

RAM 3500 4X4 CREW CAB TRADESMAN 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	6640	7357	4126	3231	5500	9750	22600	14900
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	6640	7357	4126	3231	5500	9750	25000	17300
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5530	8470	5053	3417	6000	9750	42800	33990
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	5050	8445	5020	3425	6000	9750	40210	31430

RAM 3500 4X4 CREW CAB TRADESMAN 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11440	4440	7004	4097	2906	5500	7000	22000	14660
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11440	4440	7004	4097	2906	5500	7000	24240	16900
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12300	4310	7991	4997	2993	6000	7000	33610	25280

RAM 3500 4X4 CREW CAB TRADESMAN W/O 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4730	6305	3944	2360	5500	7000	22000	14790
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4730	6305	3944	2360	5500	7000	24240	17030

RAM 3500 4X4 CREW CAB TRADESMAN W/O 8’0” BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11440	4990	6453	4114	2339	5500	7000	22000	14570
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11440	4990	6453	4114	2339	5500	7000	24240	16810

RAM 3500 4X4 MEGA CAB LARAMIE 6’4″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5380	8620	5053	3566	6000	9750	41950	32990
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	4910	8587	5009	3577	6000	9750	39410	30480

RAM 3500 4X4 MEGA CAB LARAMIE 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12300	4100	8201	5029	3171	6000	7000	32720	24180

RAM 3500 4X4 MEGA CAB LIMITED/LONG HORN 6’4″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	5210	8785	5148	3636	6000	9750	41620	32490
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	4710	8792	5140	3652	6000	9750	38250	29110

RAM 3500 4X4 MEGA CAB LIMITED/LONG HORN 6’4″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12300	3840	8460	5158	3301	6000	7000	32130	23330

RAM 3500 4X4 MEGA CAB LIMITED/LONG HORN 6’4″ BOX W/ RAMBOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	12300	3710	8587	5147	3440	6000	7000	31960	23000

RAM 3500 4X4 REG CAB BIG HORN/LONE STAR 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4670	6374	3720	2654	5500	7000	22000	15290
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4670	6374	3720	2654	5500	7000	24230	17520
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11830	4410	7419	4642	2776	6000	7000	34000	26240

RAM 3500 4X4 REG CAB BIG HORN/LONE STAR W/O 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	5160	5877	3771	2106	5500	7000	22000	15130
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	5160	5877	3771	2106	5500	7000	24230	17360

RAM 3500 4X4 REG CAB TRADESMAN 8’0″ BOX DRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	14000	7200	6796	3780	3015	5500	9750	22600	15460
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	14000	7200	6796	3780	3015	5500	9750	25000	17860
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	14000	6050	7947	4718	3228	6000	9750	45000	36710
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	13500	5580	7917	4727	3190	6000	9750	43200	34950

RAM 3500 4X4 REG CAB TRADESMAN 8’0″ BOX SRW

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	4580	6462	3762	2699	5500	7000	22000	15200
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	4580	6462	3762	2699	5500	7000	24230	17430
6.7L I6 CUMMINS HO TURBO DIESEL ENG	8-SPD TORQUEFLITE HD AUTO TRANS	3.42	11830	4350	7478	4655	2823	6000	7000	34000	26180

RAM 3500 4X4 REG CAB TRADESMAN W/O 8’0″ BOX

Engine	Trans.	Axle Ratio	GVWR	Payload	Base Weight Total	Base Weight Front	Base Weight Rear	GAWR Front	GAWR Rear	GCWR	Max Trailer Weight Rating
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	3.73	11040	5140	5902	3784	2117	5500	7000	22000	15100
6.4L V8 HEMI UPGRADE HD ENGINE	8-SPD AUTO 8HP75-LCV TRANSMISSION	4.10	11040	5140	5902	3784	2117	5500	7000	24230	17330

Which Trim Should You Buy?

Buyer use-case	Best fit	Why
Best value work truck	Tradesman or Black Express	Gets you into HD capability without paying for luxury content you won’t use. Build around towing groups and the right cab/bed.
Gateway off-road HD	Warlock	Off-road hardware focus at a lower price point than Rebel; good for job sites, winter, and rough access roads.
Best daily driver balance	Big Horn / Lone Star	Flexible equipment groups let you add comfort/tech without jumping into full luxury pricing.
Best off-road capability (specialty)	Power Wagon	Purpose-built off-road focus; don’t choose it for maximum towing or diesel availability.
Best “nice interior, still a truck.”	Laramie	Often, the sweet spot for comfort and tech availability without the full luxury trim premiums.
Best luxury	Limited Longhorn or Limited	Top trims concentrate premium tech and comfort options; Limited Level 1 listing includes tow/safety tech content in the equipment group shown.
Best tow rig	3500 Cummins HO DRW	The towing charts show the highest GCWR and max trailer ratings in DRW diesel configurations (example: 45,000 GCWR / 36,720 max trailer).

Quick takeaway: If you’re stuck between 2500 and 3500, decide based on your real weights. If you’re consistently near the limits, it’s usually smarter (and calmer) to step into the 3500.

2026 Ram 2500 Black Express Crew Cab 4×4. (MoparInsiders).

Final Thoughts

The 2026 Ram Heavy Duty lineup doesn’t try to reinvent itself. Instead, it builds on the major 2025 overhaul and sharpens the entry point with the new 2500 Black Express and 2500 Warlock. The bigger story for real buyers is that GVWR and payload ratings can change due to certification updates, making it even more important to shop the official towing charts rather than assumptions or old numbers.

The best way to buy one of these trucks is boring but effective:
Pick your trailer and payload reality first, choose 2500 vs 3500, pick gas vs diesel, then choose the trim that fits how you’ll live with the truck every day. A correctly spec’d “lower” trim will beat the wrong high trim every time.

Ram Heavy Duty Gallery:

This slideshow requires JavaScript.
