Fender Flares?
- Thread starter RTillery
- Start date
Do they have a texture to them, or are they smooth?
Chris1911
Well-Known Member
I just got those for mine. They are textured. Did you leave the texture in yours, or did they smooth them out? Looks smooth in the pics.
Hey I just thought I would put out there What I did. I have a ‘19 Tradesman that I put oem flares on. As said above they are designed to be used with clips that go through the holes in the fenders. I reversed all the clips so the flat side was against the body and used 3M’s double sided tape on the clips to stick them to the body. They all seemed to stick well. I then cut down the original plastic guards on the bottom to fit around the flares. A pain but they’re on there.
TogaLock77
Active Member
- Messages
- 133
- Reaction score
- 216
- Points
- 43
Any chance you can get so close up photos.
Yeah. Once I get a chance I’ll try to get some decent pictures and upload them
Squatch
Well-Known Member
You mind sharing the part number for those?
Part number for the flares are: 50930-02
Part number for the bolts are: 100034-01
U
User_1648
Guest
Canadian Mopar
Member
- Messages
- 59
- Reaction score
- 36
- Points
- 18
They have a couple pins that go in holes in the face of the fender, those are just to align the flare, so I cut those off. Then there are multiple clips that can easily be removed, these are what are suppose to hold the outer edge to the fender face.
I take my flares off quite frequently to clean behind them so I didn't 3M them to the face, but you could do that if you wanted to stop some of the dirt from getting in there. I also have bed liner behind them so I'm not worried about them scratching anything, but you might want to put something between them and your paint.
TogaLock77
Active Member
- Messages
- 133
- Reaction score
- 216
- Points
- 43
Interesting. So the way I understand it is... Your flares are held in by the wheel well clips and the top edge along the fender face is loose. If this is true, is there a gap and do they flutter or rattle?
Canadian Mopar
Member
- Messages
- 59
- Reaction score
- 36
- Points
- 18
Yes, that's how the flares on the 10-18 trucks were done as well, in later years they started to 3M the outer edges. And no, there is no gap, when I put the bolts in I made sure it was nice and tight against the face of the fender.
TophandRam
Active Member
I just ordered these from (www.mymoparparts.com) for my 2019 with shipping $169.. thanks for the info I will follow the same approach Canadian Mopar did, definitely cheaper and its a factory part than some of the knock offs on ebay or Amazon.
TogaLock77
Active Member
- Messages
- 133
- Reaction score
- 216
- Points
- 43
Do you know if those are the paintable or the black textured? EDIT: Disregard, I found a reference. They are the primed ones not the black.
Canadian Mopar
Member
- Messages
- 59
- Reaction score
- 36
- Points
- 18
The power wagon ones with the indent on the top are black textured, not sure about the regular "Laramie" style ones.
TophandRam
Active Member

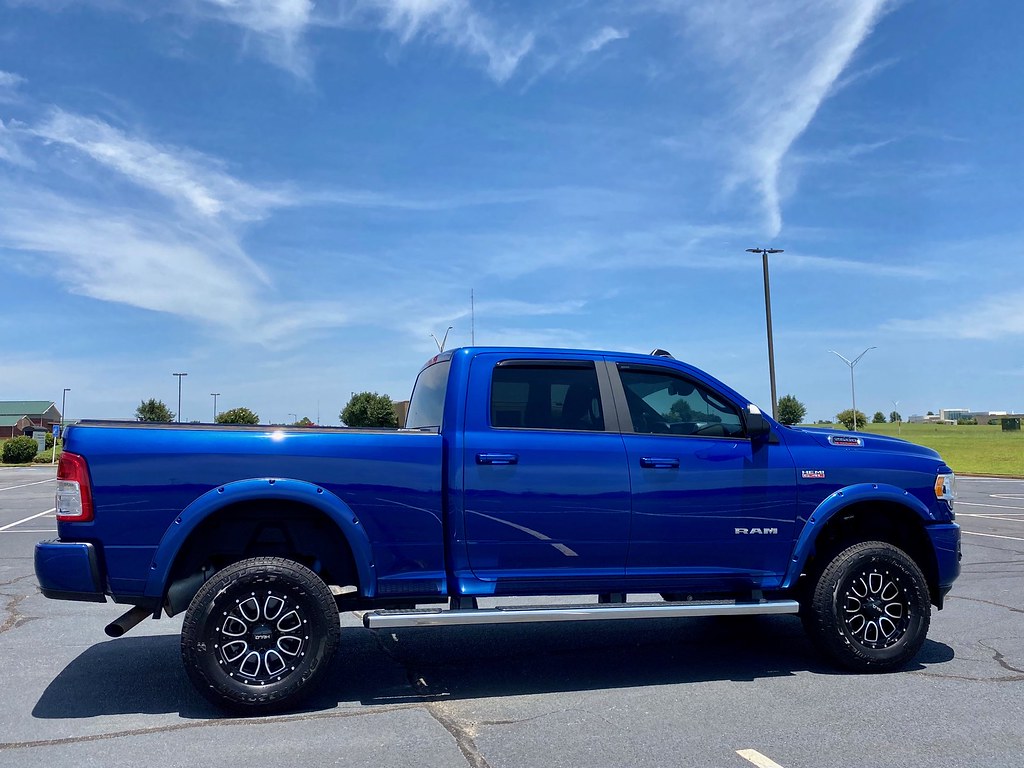

An update on the new fender flares, I had ordered a set of 2019/20 Power Wagon oem fender flares about $165 including shipping.
These are nice, wider than the stock oem painted type flares,
Since my truck didnt come with these and on the new body style the fenders have holes to clip these in, I used a set of diagonal cutters and cut off all the push in clips and a few molded parts designed to align the fenders.
Added a piece of 3m double sided molding tape on each white clip . I had to remove all the inner fender bolts 8mm socket I think, removed the lower moldings.
Bolted each one and pushed the upper fender so the tape sticks. They fit great , on the rear fenders you will need to add a two screws a few flat washers and nut since the flares have these holes and truck already has the holes..
Beginning to end about 2 hours to install, it was hot and i went slow, I think they look great and will help out when I level the truck and go to 35x12.50's
These are nice, wider than the stock oem painted type flares,
Since my truck didnt come with these and on the new body style the fenders have holes to clip these in, I used a set of diagonal cutters and cut off all the push in clips and a few molded parts designed to align the fenders.
Added a piece of 3m double sided molding tape on each white clip . I had to remove all the inner fender bolts 8mm socket I think, removed the lower moldings.
Bolted each one and pushed the upper fender so the tape sticks. They fit great , on the rear fenders you will need to add a two screws a few flat washers and nut since the flares have these holes and truck already has the holes..
Beginning to end about 2 hours to install, it was hot and i went slow, I think they look great and will help out when I level the truck and go to 35x12.50's
Attachments
Chris1911
Well-Known Member
Mopar oem off road fender flares.
Last edited:
Squatch
Well-Known Member
I jumped on amazon today and there was a $75 off coupon with it. Got the black bolts and the flares for 415 bucks all said and done.
dean.fritz10
New Member
- Messages
- 4
- Reaction score
- 0
- Points
- 1
Is the rear flares for the dually same as the fleetsides?
Sent from my SM-N975U using Tapatalk
Sent from my SM-N975U using Tapatalk
