I am looking to add more off-road lighting to my truck and have searched and searched and have not found much and I know people have added lighting on their trucks. So, let’s put it all in one thread. Post what you have in lighting such as light bars, ditch lights, pods, rock lights etc!

I currently have the M&R 30” hidden light bar and two KC Cyclone V2 rock lights. I have 2 more for the rear but have only had time to install 2. More to come!!!



[Crusty old shellback]

I have Harbor Freight Roadshock Edge 6 led lights up front.

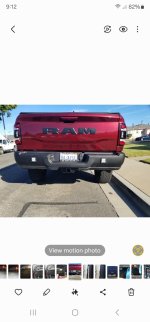

Baja Design Flood lights in the rear bumper using SDHQ prototype mounting "shim" to match the curve of the bumper.
Full build details in my build thread.



[Lonestar]

I have Harbor Freight Roadshock Edge 6 led lights up front.
Baja Design Flood lights in the rear bumper using SDHQ prototype mounting "shim" to match the curve of the bumper.
Full build details in my build thread.
View attachment 78744View attachment 78745
View attachment 78746

Did you just cut holes in your rear bumper for those pods?



[Crusty old shellback]

Did you just cut holes in your rear bumper for those pods?

Yes. Details in my build thread.



[OC455]

I've installed my Randy Ellis Design Sleekster light mount and my ditch light hood brackets.

I'm using Morimoto BigBanger NCS light pods. I do not have it wired yet, trying to figure out the best way to route the harness for a clean install.

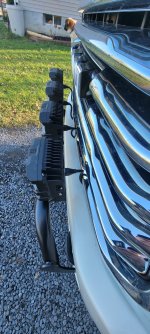

Just some pics of the pods temporarily mounted on the light bar.



[Lonestar]

Looks great! Keep us posted on how you decide to wire it up.



[Rockcrawlindude]

Baja designs front and rear for aux lighting

Squadron SAE fogs in factory bezels
Squadron off road lights on bumper



S2 backup lighting
(Old pics dug up here)



[Darkside]

Rough Country 30” black curved light bar, perfect fit between the uprights of the Go Industries brush guard and matches the angles.



[Lonestar]

Baja designs front and rear for aux lighting

Squadron SAE fogs in factory bezels
Squadron off road lights on bumper

View attachment 78874

S2 backup lighting
(Old pics dug up here)
View attachment 78875View attachment 78876

Where did you mount the S2 lights?



[Rockcrawlindude]

Where did you mount the S2 lights?



[OC455]

I had the lights wired up today. Seeing how it's coming to the end of the year and I have a lot to get done before the white stuff hits, I opted to take my truck to JPJ Communications and have them run the harness and have them get it done. They primarily install equipment and coms in all of the EMS/LE and municipal vehicles in the local area. They did the wiring beautifully and have it run well out of the way of everything.

I do need to adjust the lights for them to be optimal with the light distribution. The backlight function works perfectly and dims down when the lights come on.

I will get some good pictures of everything tomorrow or the next day.



[Lonestar]

I had the lights wired up today. Seeing how it's coming to the end of the year and I have a lot to get done before the white stuff hits, I opted to take my truck to JPJ Communications and have them run the harness and have them get it done. They did the wiring beautifully and have it run well out of the way of everything.

I do need to adjust the lights for them to be optimal with the light distribution. The backlight function works perfectly and dims down when the lights come on.

I will get some good pictures of everything tomorrow or the next day.View attachment 78995

Post some pics at night when you can



[OC455]

Here are some updated pics.



[OC455]



[OC455]



[OC455]



[OC455]

This is the back light with no parking/headlights on.


This is the back light function with the parking lights on. Automatically dims the back light.



[OC455]

Spot lights are the center.

Spots and the combo with the ditch lights on.

Morimoto NCS BigBanger spot lights (2)
Morimoto NCS BigBanger combo lights (2)
Morimoto NCS Bigbanger combo ditch lights (yellow) (2) with Morimoto ditch light brackets.
Morimoto BangerBar wiring harness (1)
Diode Dynamic deutsch 4 pin extension harness 3 meter (2)
Diode Dynamic deutsch 4 pin extension harness 1 meter (4)
Micro fuse tap (1)
Black nylon bushings (4) (Runnings)

There's the list. I don't think I forgot anything.



[OC455]

Some night time pics. I have to adjust the pods. Need a flat area with some distance.



[OC455]

With only the parking lights on and the back light.

Spot light pods. Both need adjustment.

Combo and ditch lights. No spot lights.

All on. All of them need to be tweaked to shoot farther out and have a good spread.
